UNDER TILE WATERPROOFING

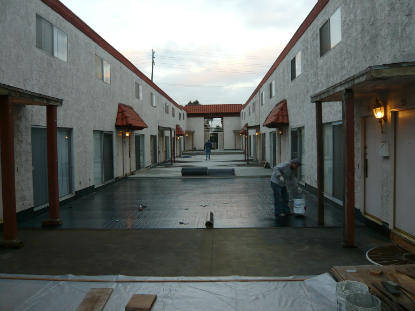

UNDER TILE WATERPROOFING COURTYARD CONSTRUCTED ABOVE SUBTERRANEAN GARAGE

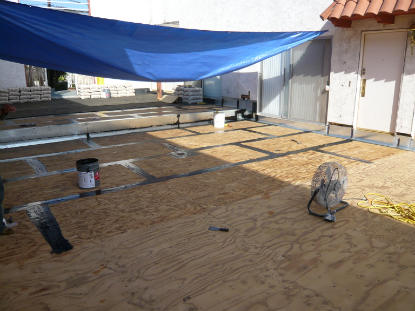

- Structural wood frame and plywood substrate courtyard located above subterranean garage.
- Application of CCW 525 waterproofing plus reinforcing fabric to Structural-1 T+G plywood ¾" substrate seams and joints.

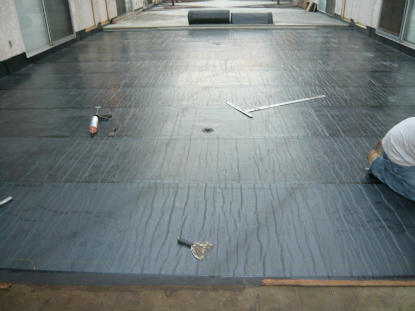

WATERPROOFING PLUS REINFORCING FABRIC APPLIED
CREATING A MONOLITHIC UNDER TILE WATERPROOFING DECK MEMBRANE
- Application of two coats CCW 525 waterproofing plus reinforcing fabric
- Waterproofing applied to structural plywood substrate and to carry up all perimeter flashings 6" in vertical height.

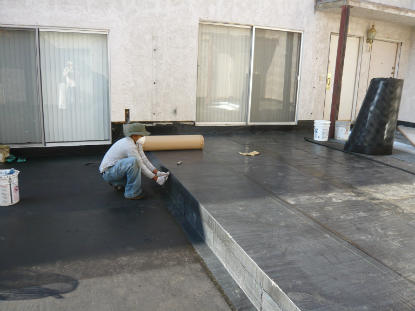

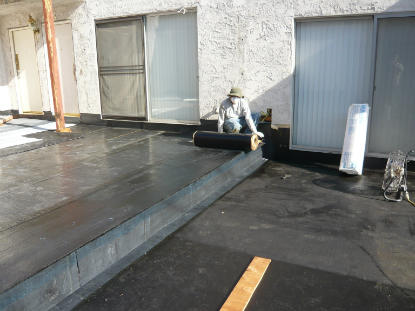

SHEET MEMBRANE APPLIED TO DECK STEP TRANSITION
SHEET MEMBRANE PROVIDES 2 LAYERS OF UNDER TILE WATERPROOFING PROTECTION
- Application of CCW Miri Dri 860 sheet applied membrane, primed with CCW 702 for correct adhesion
- Creating a monolithic under tile and stone deck waterproofing membrane applied over prefabricated flashings.

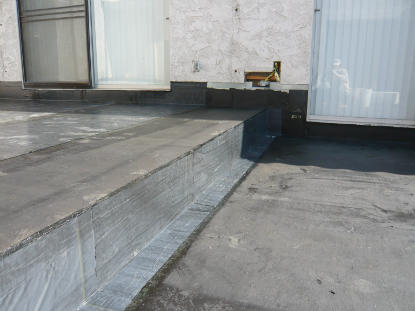

SHEET MEMBRANE APPLIED OVER CHANGE IN ELEVATION DECK FLASHING
THERMAL MOVEMENT AT DECK TRANSITION REQUIRE ATTENTION TO DETAIL TO PREVENT DECK LEAKS
- Application of sheet applied membrane to inside corner step transition located at deck change in elevation.
- Flexible sheet membrane provide increased under tile waterproofing protection due to structural thermal expansion and contraction
FLEXIBLE SHEET MEMBRANE PROVIDE INCREASED PROTECTION
DECK THERMAL EXPANSION AND CONTRACTION REQUIRES A FLEXIBLE UNDER TILE WATERPROOFING
- Application of CCW 702 primer prior to applying sheet membrane with correct 4" over lap to inside corner deck change in elevation.
- Surface preparation and correct adhesion are necessary prevent deck waterproofing failure.

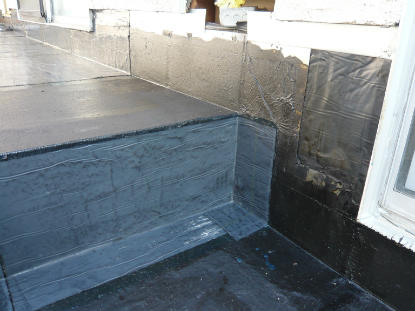

SHEET MEMBRANE OUTSIDE CORNER APPLICATION
APPLICATION OF SHEET MEMBRANE OVERLAPPING INSIDE CORNER DECK TRANSITION
- Under tile waterproofing at inside corner deck transition prior application of tile / stone deck

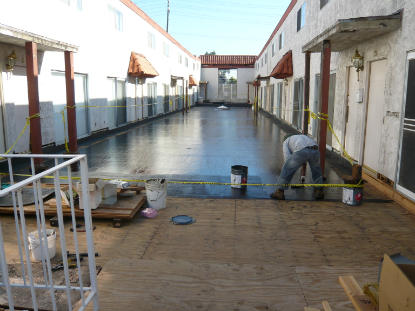

UNDER TILE WATERPROOFING APPLICATION TO COURTYARD DECK
¾" STRUCTURAL-1 PLYWOOD SUBSTRATE AND DECK JOIST BLOCKING ARE NECESSARY TO CONTROL COURTYARD MOVEMENT AND DEFLECTION
- Under tile membrane is applied to vertical perimeter deck flashings 6" in vertical height, for correct transition membrane waterproofing.
- Thermal expansion contracts and expands plywood substrate and sheet applied membrane due to thermal variations.
SHEET MEMBRANE PROTECTION FOR TILE / STONE COURTYARD DECKS
SHEET MEMBRANE CREATING A MONOLITHIC UNDER TILE WATERPROOFING MEMBRANE
- Sheet applied membrane creating a monolithic under tile waterproofing system for tile / stone decks

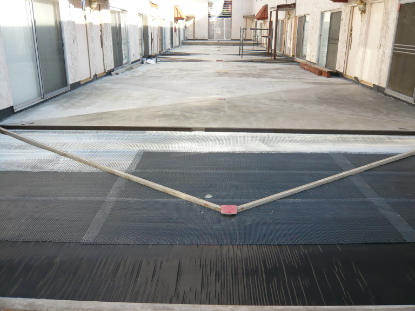

DRAINAGE PANELS PROTECTS UNDER TILE WATERPROOFING

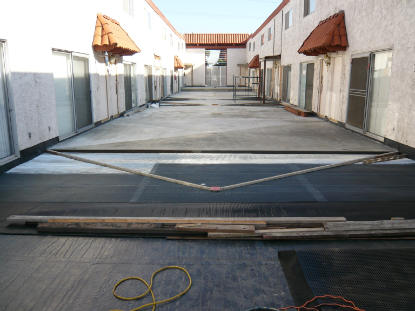

WIRE MESH APPLIED OVER DRAINAGE PANELS REINFORCING SLOPING MORTAR BED

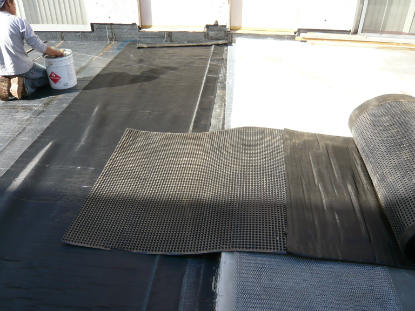

- Drainage panel provide a channel for water migration and the woven fabric directly receive structural sloping mortar bed for deck tile / stone installation.
DECK SLOPING MORTAR BED APPLIED OVER HORIZONTAL DRAINAGE PANELS
HORIZONTAL DRAINAGE PANELS CREATES A FLOATING SLOPING MORTAR BED FOR THERMAL EXPANSION AND CONTRACTION
- Assembly includes tapered wood forms used as cement sloping guides designed for deck surface water to slope to deck drains.
- Horizontal deck drainage panels applied over sheet applied membrane creates a floating structural sloping mortar bed for independent thermal movement.
TAPERED WOOD FORMS USED AS SLOPING MORTAR BED GUIDES
SLOPING MORTAR BED ALLOWS NATURAL SURFACE WATER FLOW TO DECK DRAIN
WARNING: MANY WATERPROOFING CONTRACTORS APPLY WIRE MESH AND SLOPING MORTAR BED DIRECTLY OVER UNDER TILE WATERPROOFING
THE WIRE MESH AND SLOPING CEMENT CUTS INTO THE UNDER TILE WATERPROOFING MEMBRANE DO TO THERMAL EXPANSION AND CONTRACTION CREATING DECK LEAKS
DRAINAGE PANELS PROTECT UNDER TILE WATERPROOFING MEMBRANE AND DRAINS SUBSURFACE WATER TO DECK DRAIN
