Deck Drain Replacement | Deck Drain Leaks | Deck Drainage System

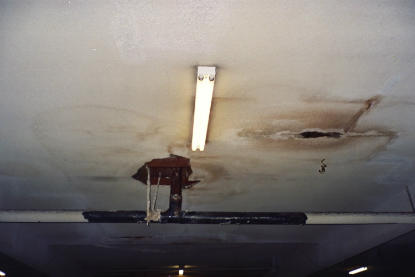

DECK DRAIN LEAKS CREATING CEILING WATER DAMAGE
DECK DRAIN LEAKS LOCATED ABOVE SUBTERRANEAN GARAGE
- Water damage ceiling requiring immediate removal to locate deck drain leak
- Water damaged ceiling removed immediately to prevent mold growth to ceiling joist
- We provide eco-friendly mold removal
DECK DRAIN LEAKS REQUIRES DRAIN REPLACEMENT

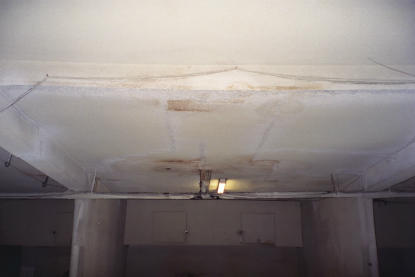

WATER DAMAGE CEILING REMOVAL DUE TO DECK DRAIN LEAK
- Structural wood joist require immediate drying to prevent mold growth
- IICRC certified microbial technician
- On site BENEFECT microbial testing providing immediate low cost results

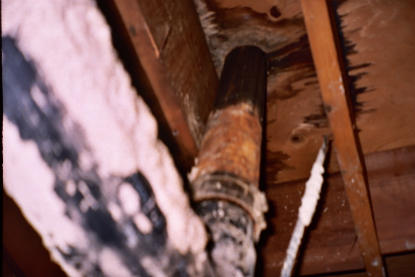

DECK DRAIN LEAKS CREATING STRUCTURAL WOOD ROT
DECK PLYWOOD SUBSTRATE REQUIRES REPLACEMENT PRIOR TO INSTALLING DECK DRAIN SYSTEM
- Subterranean garage drainage system connecting to deck drains requires replacement
- due to age and condition
- We provide deck drain replacement recommendations

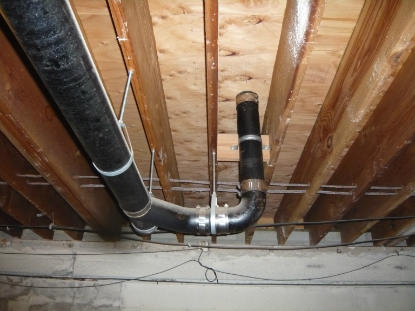

NEW CAST IRON DRAIN PIPES CONNECTED TO NEW DECK DRAINS
ADJUSTABLE HANGERS ALLOWS FOR ADJUSTING SLOPE TO CAST IRON DRAIN PIPES
- New deck drain connected to new cast iron drain pipes hangers adjusted for correct drainage slope.
- Replacing deck plywood substrate with structural-1 exterior glue tong and grove 3/4" plywood

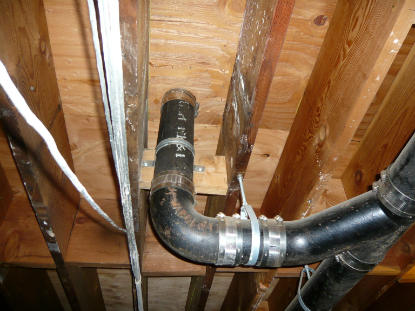

RISER CLAMP INSTALLED TO PREVENT MOVEMENT AT DECK DRAIN CONNECTION
PREVENTING DRAIN PIPE MOVEMENT WILL PREVENT DECK DRAIN LEAKS
- Cast iron drain pipe supported with riser clamp to prevent movement at deck drain connection.
- Structural joist blocking installed for riser clamp bolt connection.

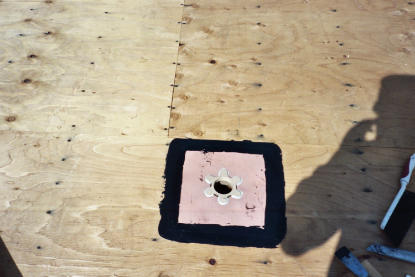

DECK DRAIN FLANGE SET IN URETHANE FOR WATERPROOFING SEAL
DECK DRAIN CONNECTS TO SUBTERRANEAN GARAGE CAST IRON DRAIN PIPE
- Urethane sealant applied for waterproofing seal to deck plywood substrate.
- Deck drains guaranteed not to leak in writing

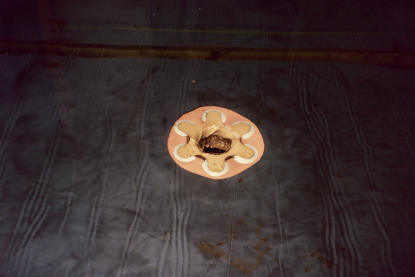

COPPER DECK DRAIN FLANGE SEALED WITH URETHANE
WATER DAMAGED AND DRY ROT PLYWOOD SUBSTRATE REPLACED

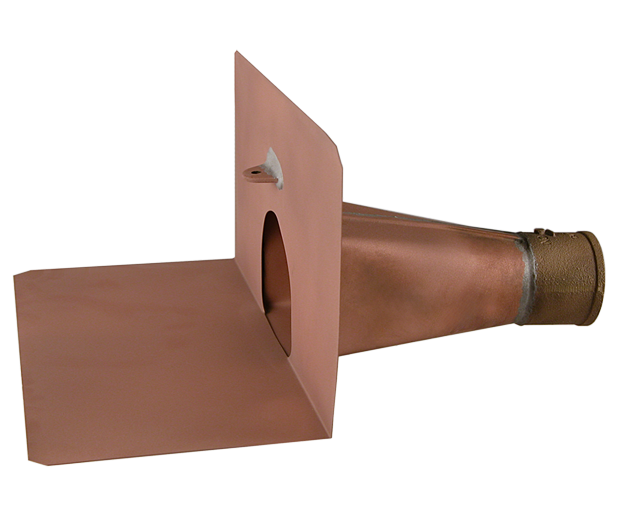

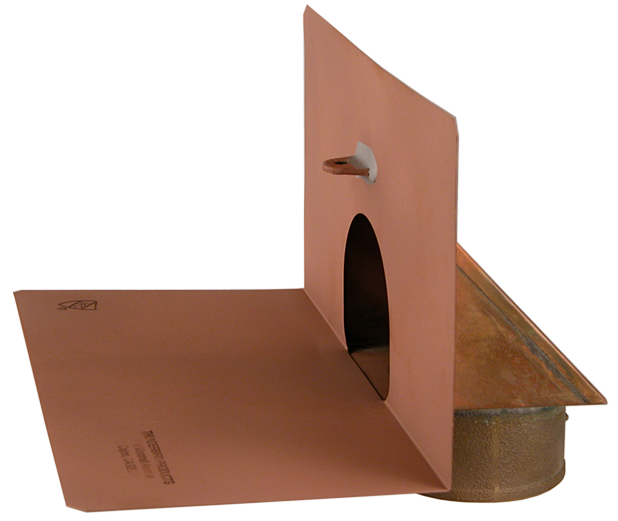

- Copper drain flashing with attached bronze drain fitting set in urethane for waterproofing seal
- Prefabricated weep holes for secondary deck drainage required for tile / stone decks
UNDER TILE WATERPROOFING MEMBRANE APPLIED OVER DRAIN FLANGE
UNDER TILE WATERPROOFING CREATES A MONOLITHIC MEMBRANE OVER PLYWOOD SUBSTRATE AND DRAIN FLANGE
- Deck drains guaranteed not to leak in writing
- Copper deck flange guaranteed not to rust in writing

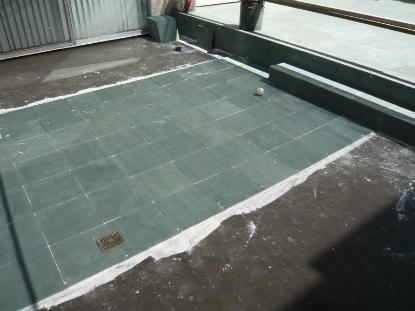

BRONZE DECK DRAIN INSTALLATION TO TILE / STONE DECK
PROVIDES A NATURAL WATER FLOW OF SURFACE DECK WATER TO DECK DRAIN
- Tile deck sloping allows natural surface water flow to deck drain`
- Bronze drain installation provides effective drainage for under tile waterproofing
TILE DECK BRONZE DRAIN INSTALLATION
SPLASH WITH CONFIDENCE
DECK DRAINS GUARANTEED NOT TO LEAK
- Bronze deck drain with perimeter urethane sealant allowing for thermal movement
- Prevents mold / mildew growth conditions to deck drain perimeter
